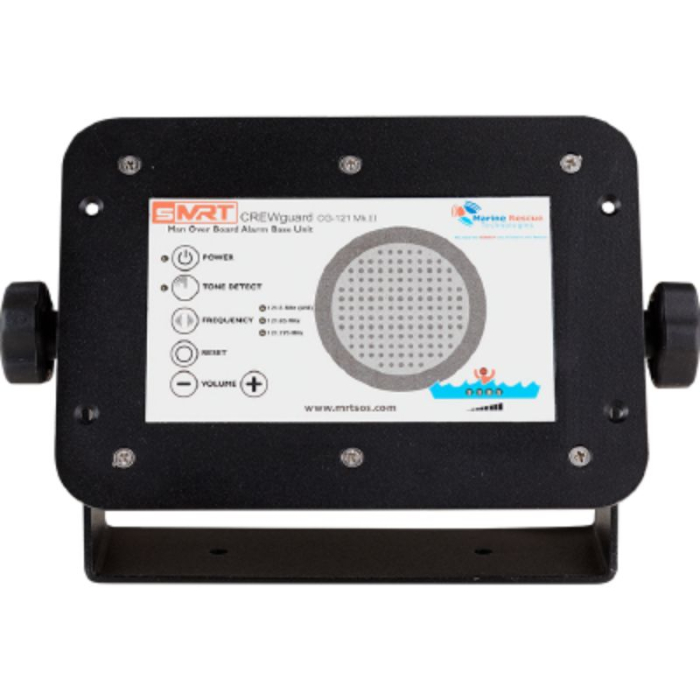

SMRT CREWGUARD BASE UNIT HIGH GAIN ANTENNA & 20M CABLE
SKU: 3050010
MNF Code: MOA-20312
MNF Code: MOA-20312
Out of stock/Available to order
The sMRT CREWguard monitors the emergency frequency 121.5MHz and provides an instant audible alarm when a distress signal is received from one of our compatible Personal Locator Beacons.
Why choose the sMRT CREWguard?
24/7 Monitoring.
Works instantly.
Automatic alarm and flashing LED man overboard warning.
Simple LED display shows signal strength (near or far).
Includes an antenna.
Can monitor an unlimited number of alerting units.
- Control Box Dimensions: 170x120x60mm Aluminium Box (excluding antenna & connectors)
- Weight: 1400gms
- Temperature range: -20°C + 60°C
- Waterproofing: IP68
- Sensitivity: 0.5 uV at antenna input
- Frequencies: 121.5 MHz, 121.65 MHz (Test 1), 121.775 (Test 2)
- Criteria of ELT/PLB recognition Audible AM-modulated howling, downward
- LF-range within 300Hz…1600Hz
- LF-range: 700 Hz minimum
- Time of repetition: 250ms.500ms• DELTA lf/25MS: -10Hz…-250Hz
- Audio exit max. 8Vss (speaker > 8 Ohm)
- Relay contact Floating, carrying capacity max. 0.5 A/10W Current Drain Standby = 80mA / If alarm + ext. speaker (8 Ohm) = 400mA
- Operating Voltage: 12V DC (+ - 20%) • Airband
Highgain Whip Antenna(optional) Type:
Dipole ½ with loaded radial. Freq
Range:118-137MHz. Impedence: 50 Ω
Radiation (HPlane):360° Omnidirectional. Gain:
2.15dbi.Max Power: 50Watts. Feed System: direct
/ Centre. Cable Length/Type: 5m, RG58 C/U.
Connector: FME-female. Length: 760mm. Weight:
330gr. Radial Length: 165mm. Mounting
Hole:14mm.
L Mounting Bracket: 98mm x 63mm
Certification(s):
| Brand | SMRT |
|---|
There are no downloads for this product.
